VMI - RAYNERI Turbotest agitator

TURBOTEST agitator, VMI-RAYNERI brand – Type V2004 – Year 2009

You can see this machine in operation here: https://youtu.be/wzil_Zutfr0

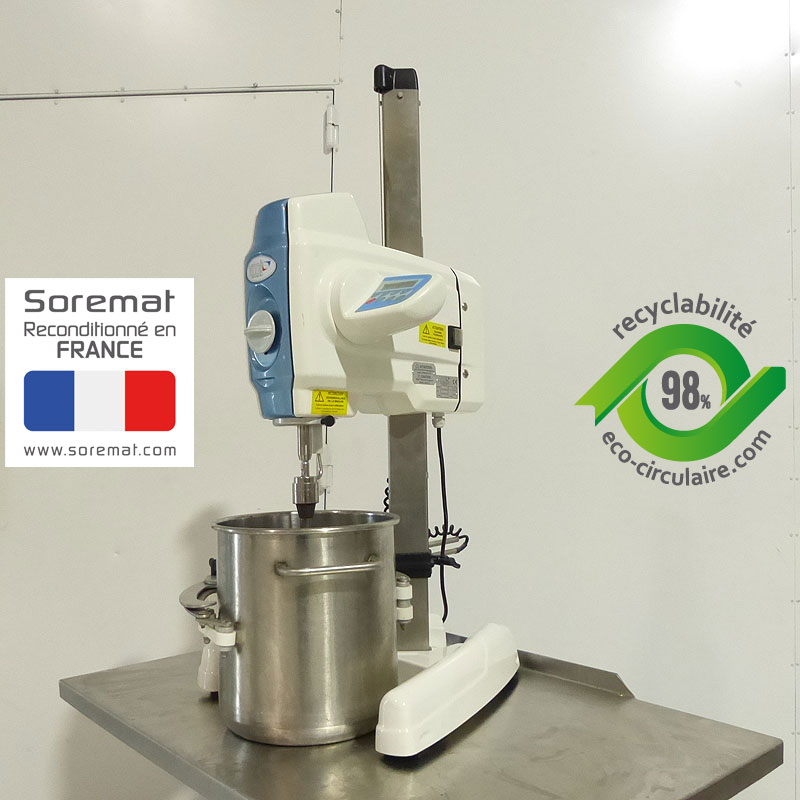

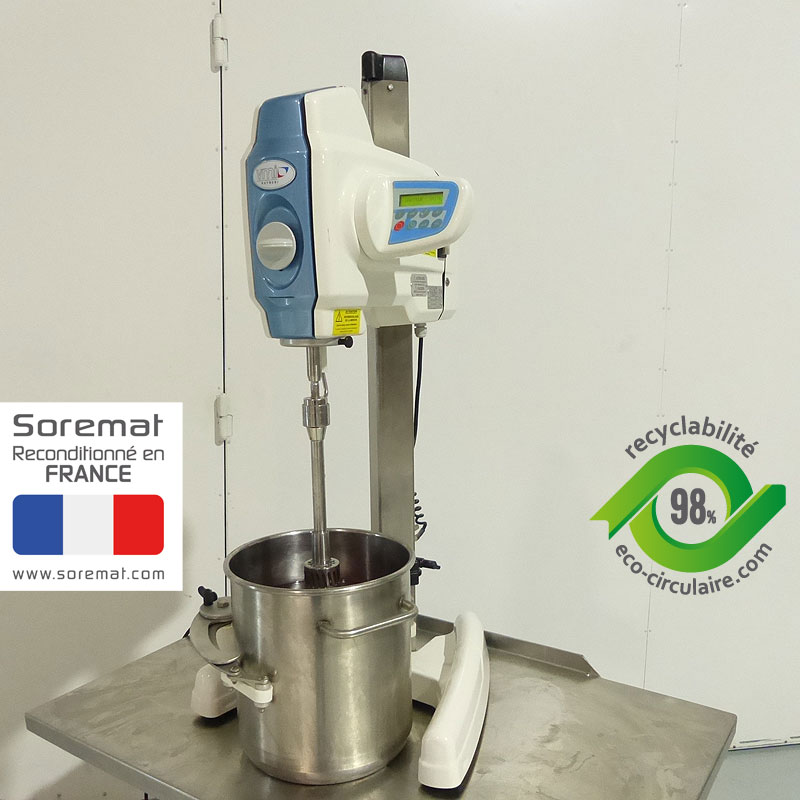

- Agitator mounted on a stainless steel stand with guide column and beaker holder base – Total vertical stroke 300 mm - Mixing capacity: 200 ml (min.) to 20 litres (max.)
- Programmable control unit with LCD screen and on/off button – manual or automatic mode with adjustable speed and duration
- Safety switch for beaker absence and column height switch
- Variable stirring speed from 50 to 3,300 rpm – DC motor – power 460 W

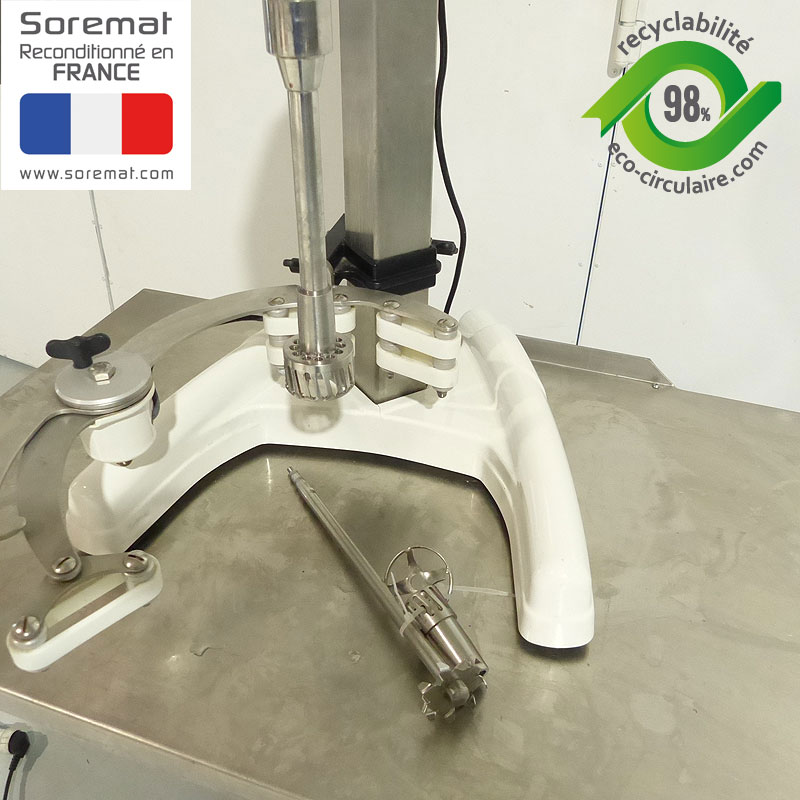

- Equipped with 3 accessories:
- 1 deflocculator: diameter 54 mm, shaft length 260 mm, shaft diameter 13 mm

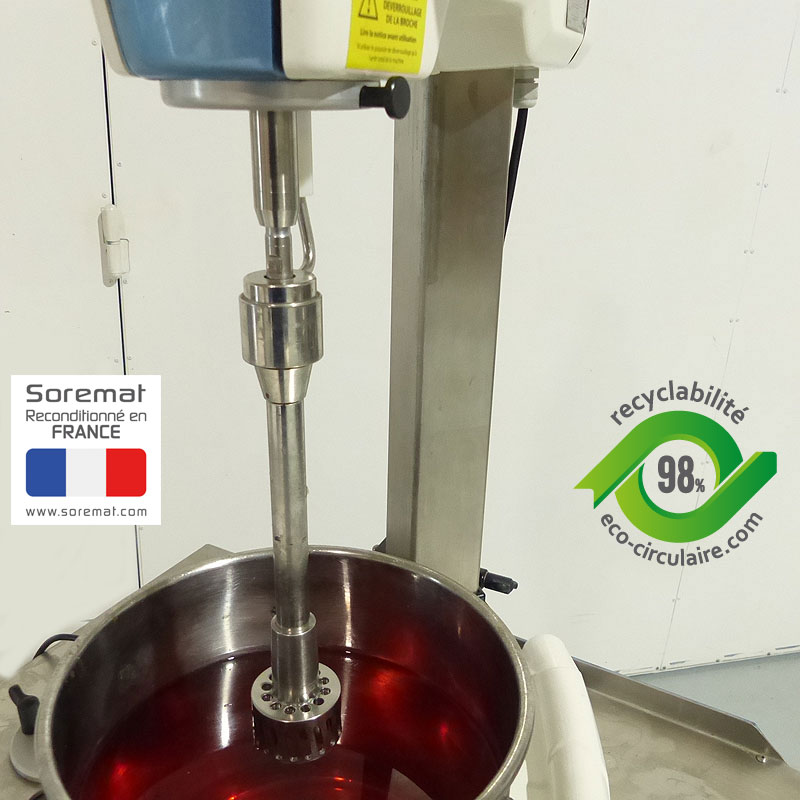

- 1 stirring propeller with 4 ringed blades, diameter 60 mm, mounted on the same shaft as the deflocculator

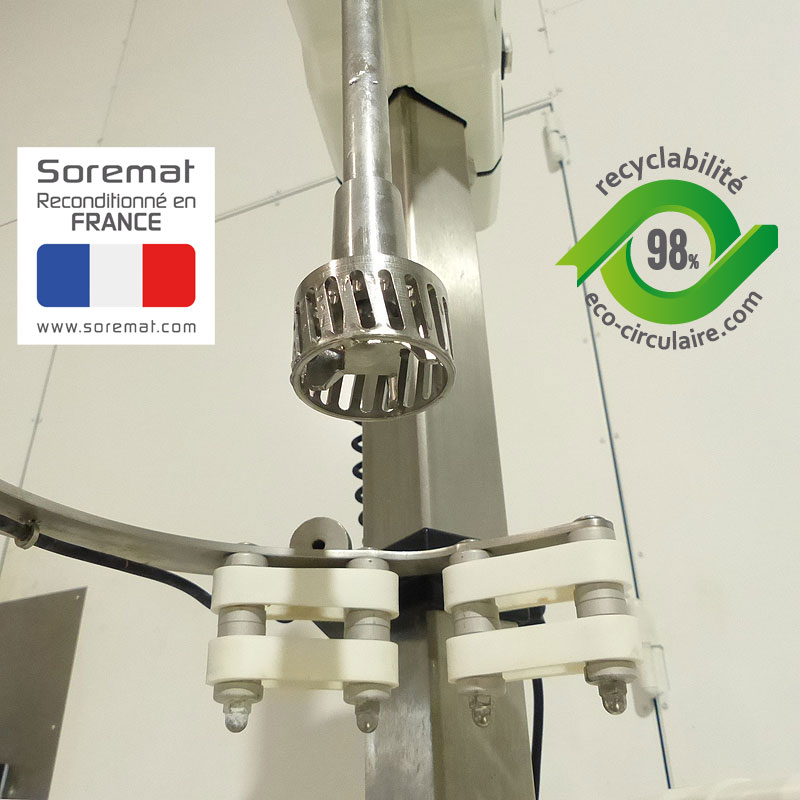

- 1 stator-rotor assembly: inner stator diameter 45 mm and rotor diameter 42 mm, with its own shaft
- Beaker: minimum dimensions 50 mm × maximum 300 mm; minimum height 100 mm × maximum 300 mm, with its own holding system

- Manufacturer’s link: https://www.pmo-consult.com/sites/default/files/PDF_Documents/VMI_Turbotest_FR.pdf
