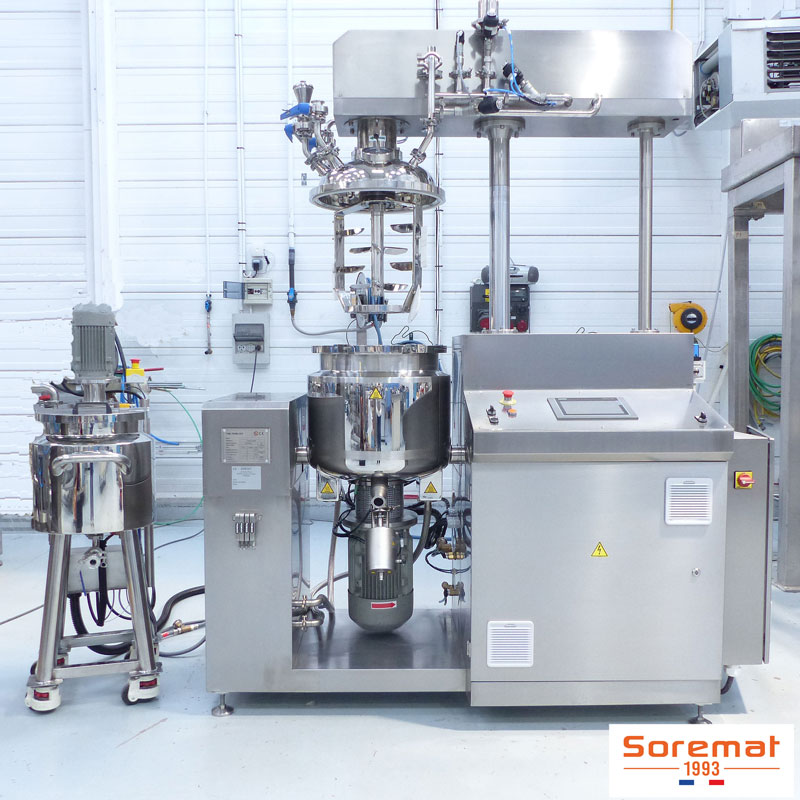

NEW 50 L mixing vessel and NEW 20 L melter

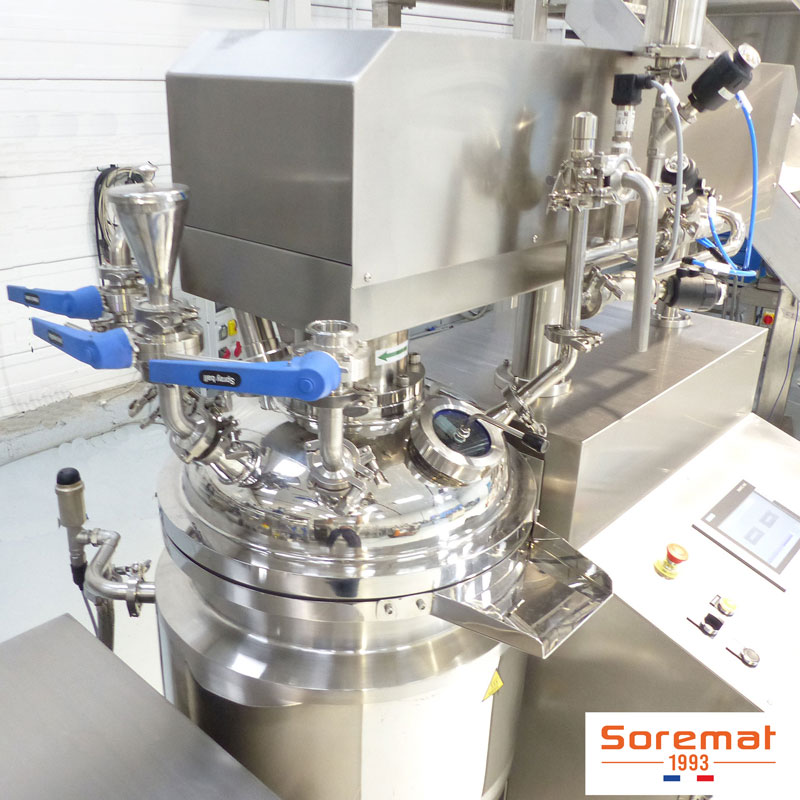

50-litre production tank equipped with:
- Hydraulically operated lift-up lid with sight glass and 80 mm wiper – clear – fragrance bowl with valve – 1 wash inlet with valve – 1 free outlet with valve- 1 safety valve - 1 vacuum pressure sensor - 1 vent - 1 pressure inlet - 1 vacuum inlet
- 1 wash ball

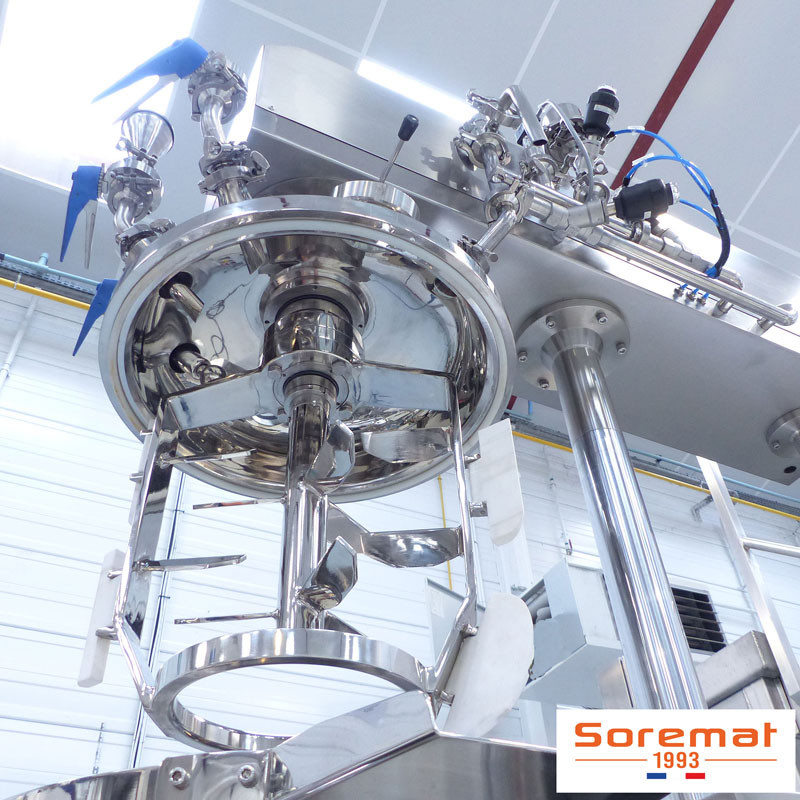

- 2 coaxial agitators with an outer frame fitted with scrapers and a central counter-agitator - motor power 1.5 kW

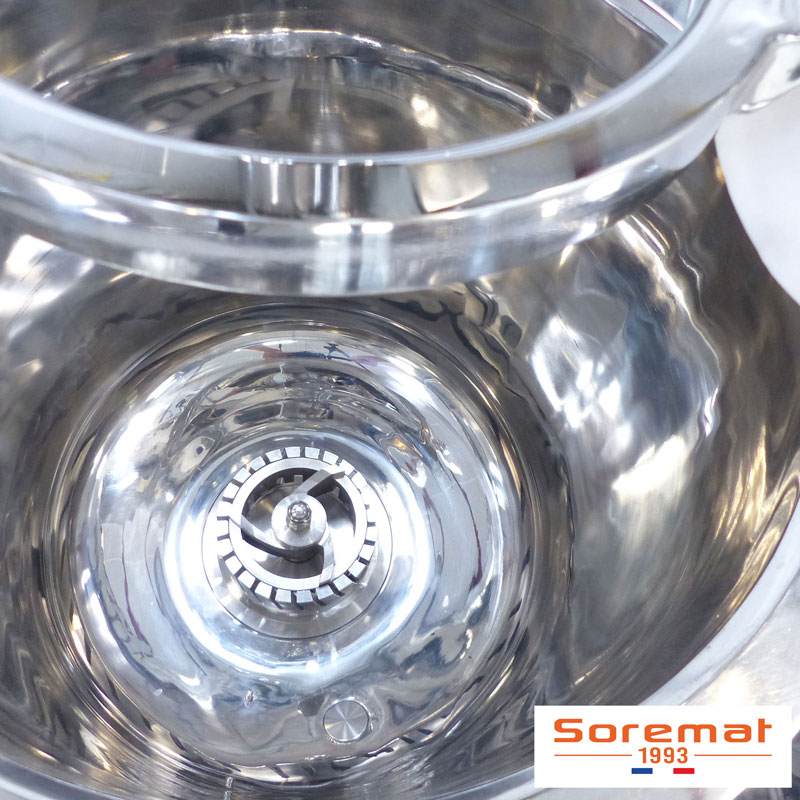

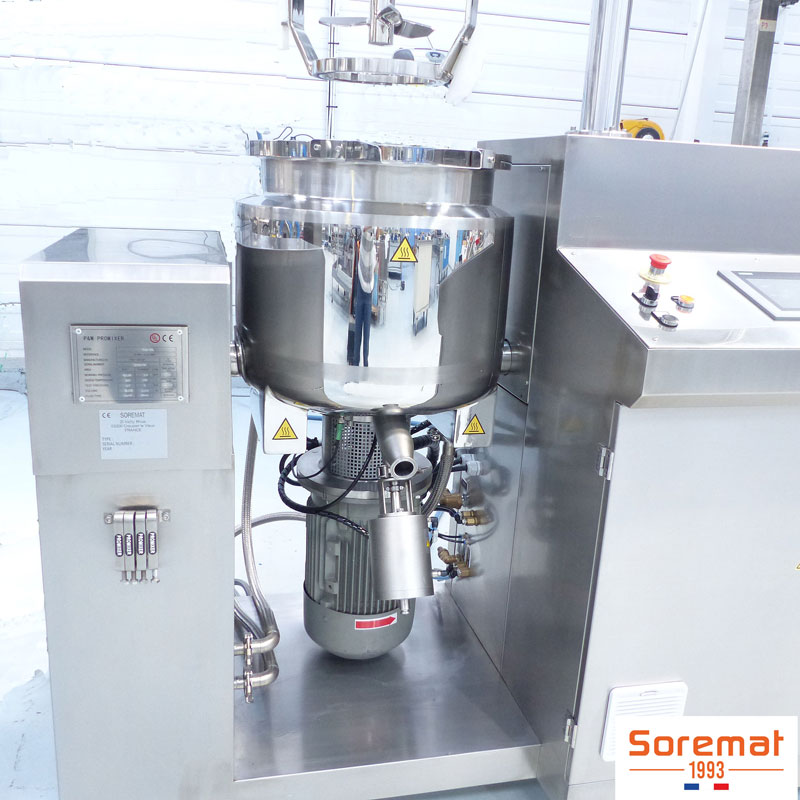

- Rotor-stator type homogeniser at the bottom of the vessel, diameter 140 mm – height 50 mm, open type – motor power 5.5 kW – 2930 rpm- Vessel tilts hydraulically forwards

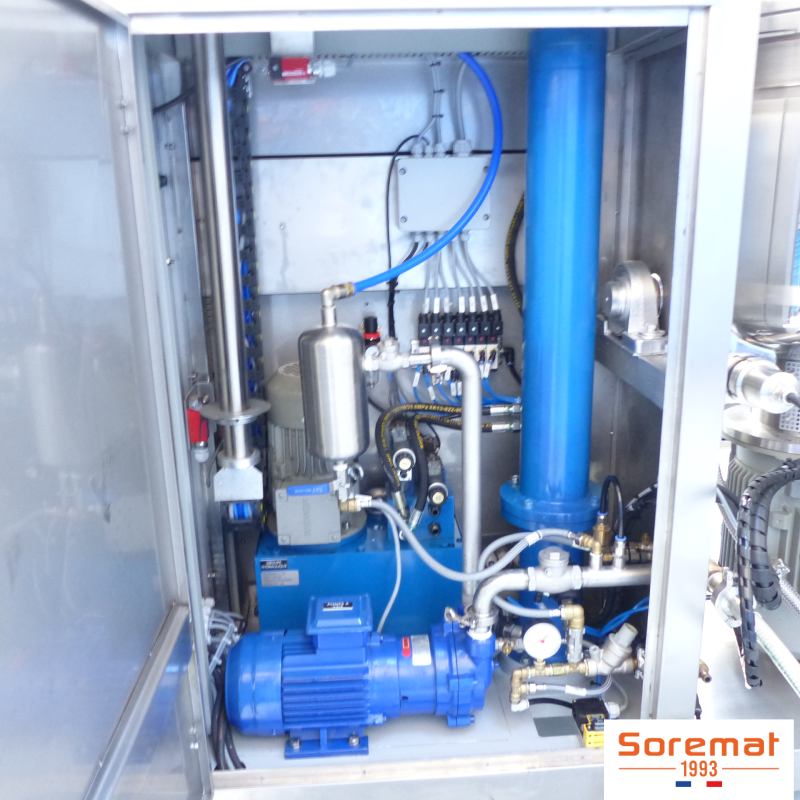

- 1 vacuum pump
- 2 heating elements, 6 kW each

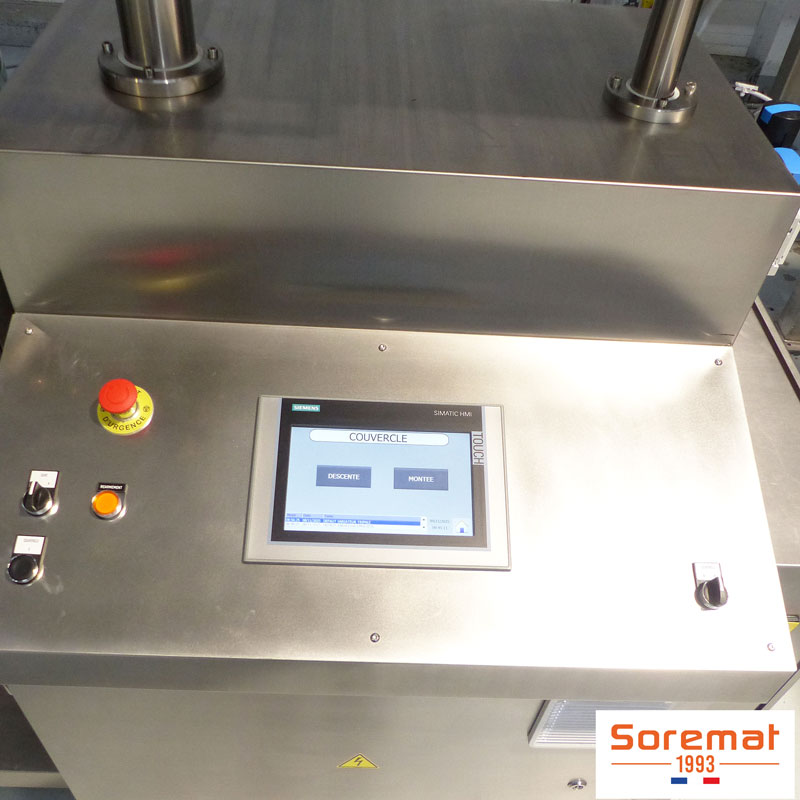

- Control panel with Siemens Simatic TP 900 Comfort HMI – Emergency stop – Reset – Two-hand control button for lowering the lid – Button for raising the lid – 2-position switch for tilting the tank forwards and returning it to an upright position

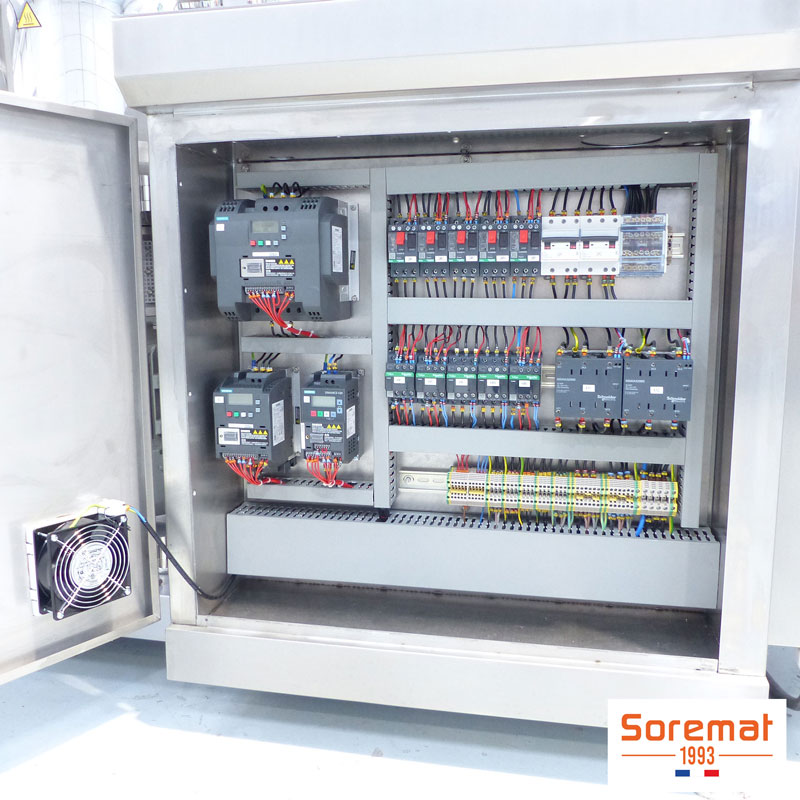

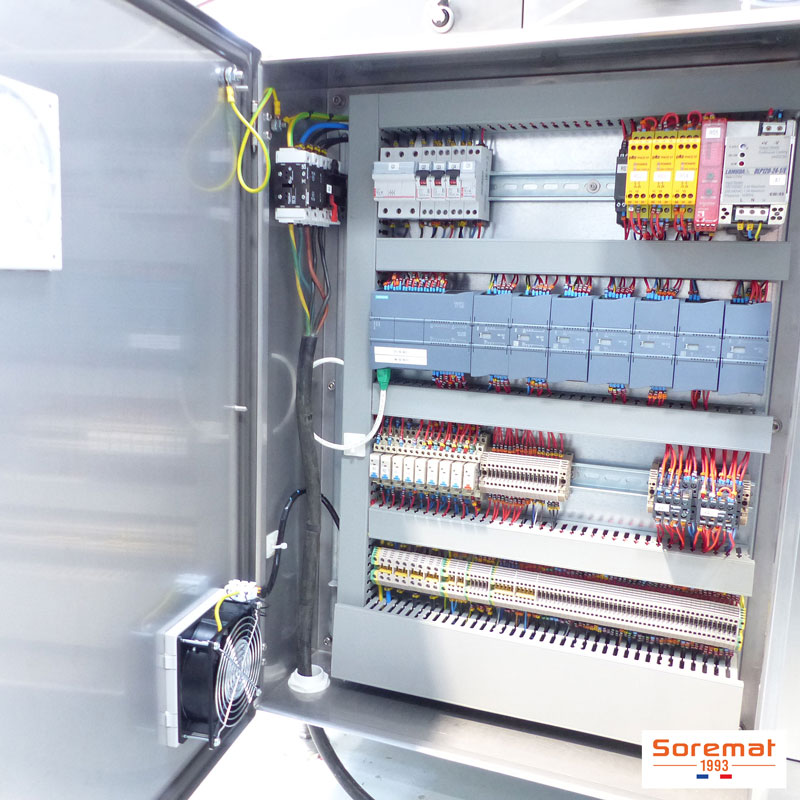

- Electrical cabinet with Siemens S7-1200 PLC – Safety relays – 3 Siemens variable speed drives
- Dimensions: 2000 x 1100 x H 2700 (lid raised) – Weight: 850 kg

You can see this tank in action at: https://youtu.be/xMHjQT79Lyw

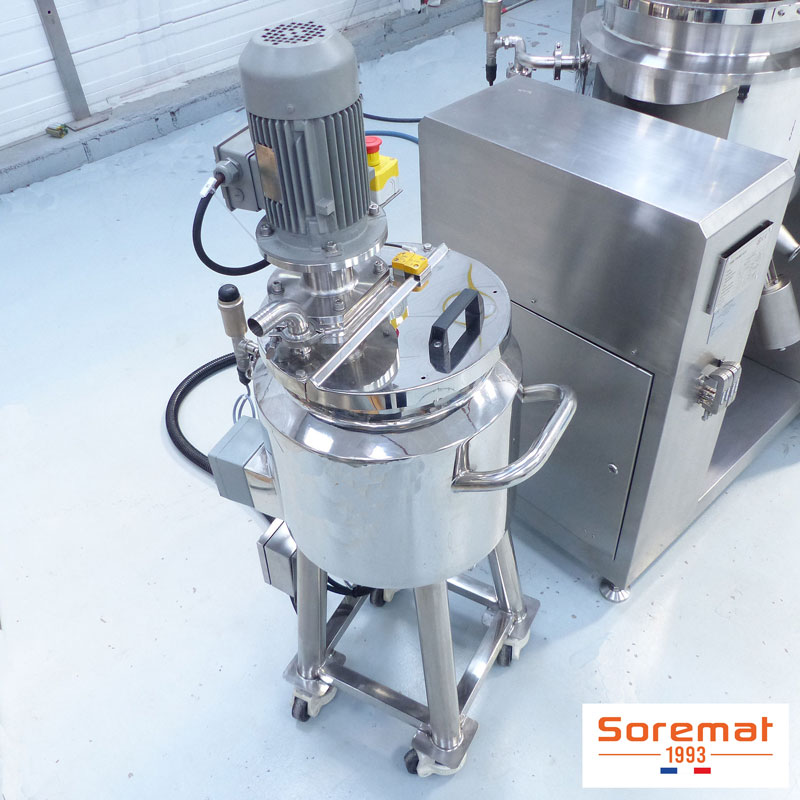

- 20-litre stainless steel melting tank on 4 castors, with:

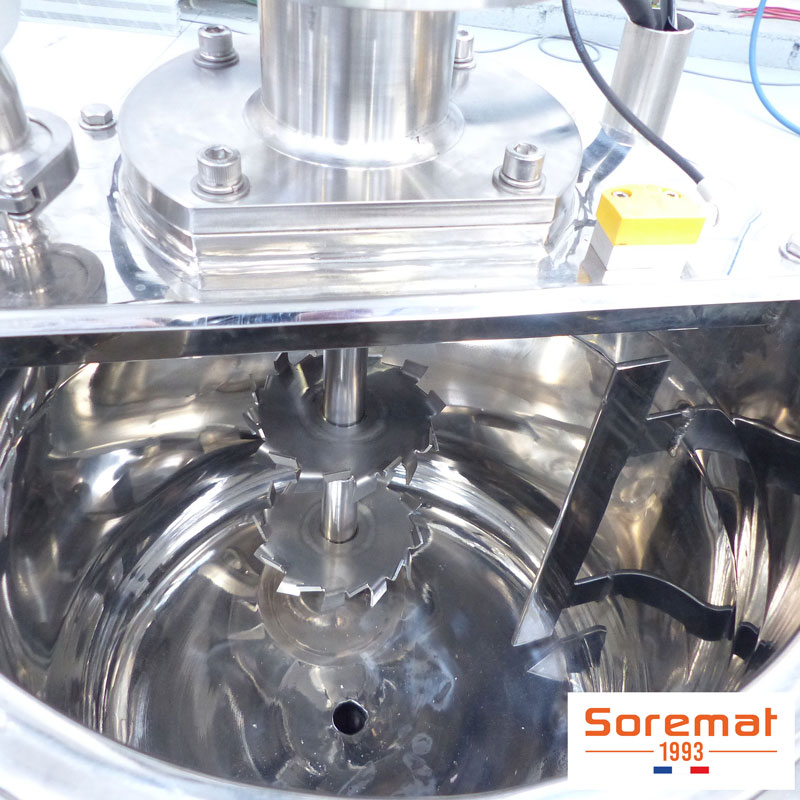

- On the lid: 1 safety sensor on the half-moon-shaped lid (340 x 160 mm) – motor power 0.55 kW – speed 1,440 rpm (offset) – suspended shaft with 2 agitators
- 1 fixed scraper inside the tank
- 1 outlet at the base of the central tank with a valve mounted at the front
- 2 heating elements, 6 kW each
- Melting tank dimensions: 500 x 700 x H 1500 – Weight: 75 kg

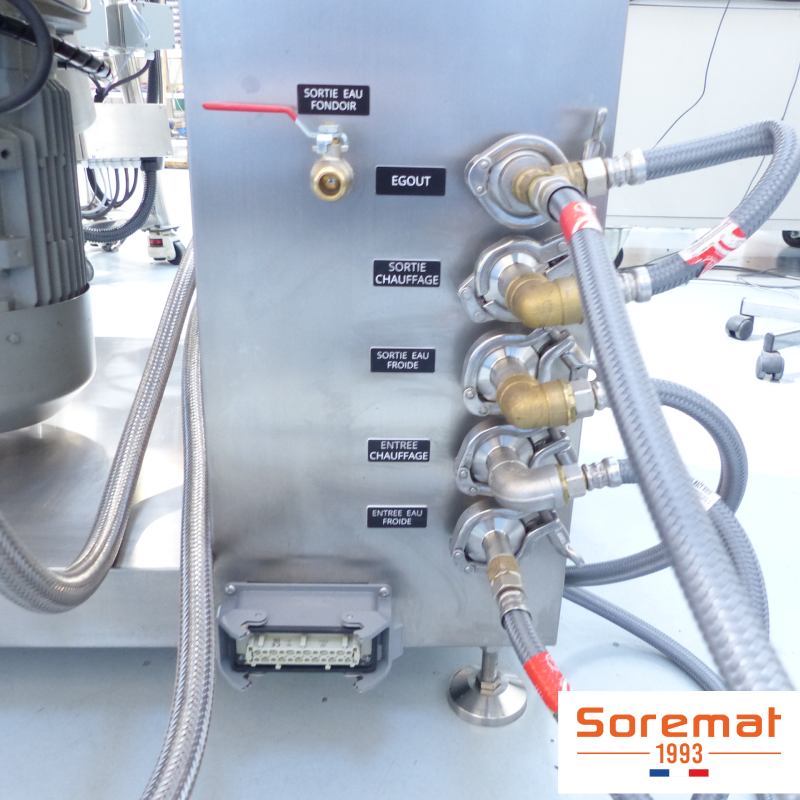

Supplies:
- Electricity: 400 V + N- Compressed air: 6 bar
