Ref: 6066
ATIM

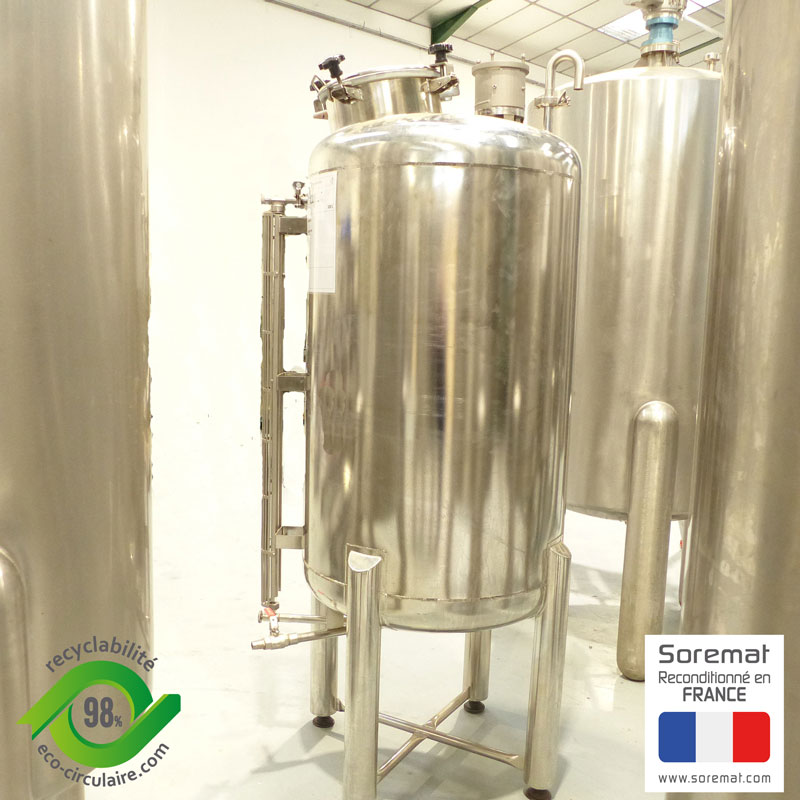

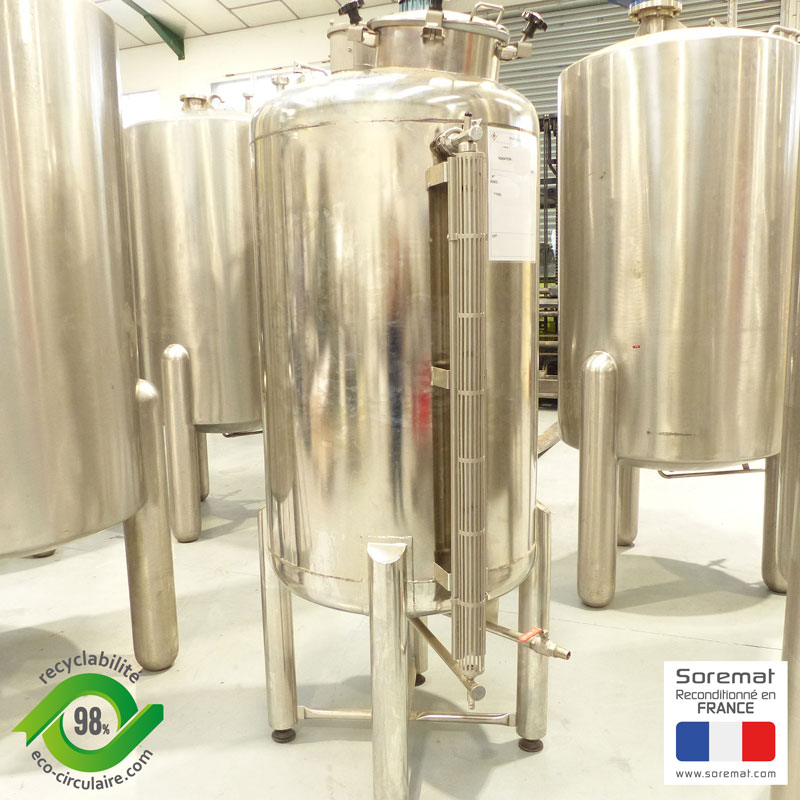

500 L ATIM INNOVATION Stainless steel tank with agitator
- On the dome: 1 lid, diameter 300 mm, locked by 4 clamping clips - 1 connection
- ATEX 0.5 Kw motor - 1429 rpm with 900 mm shaft length, 3-blade propeller tool
- Internal tank dimensions: diameter 750 mm - H1300 mm
- Curved tank bottom with central outlet
- Height from floor to valve shaft 440 mm

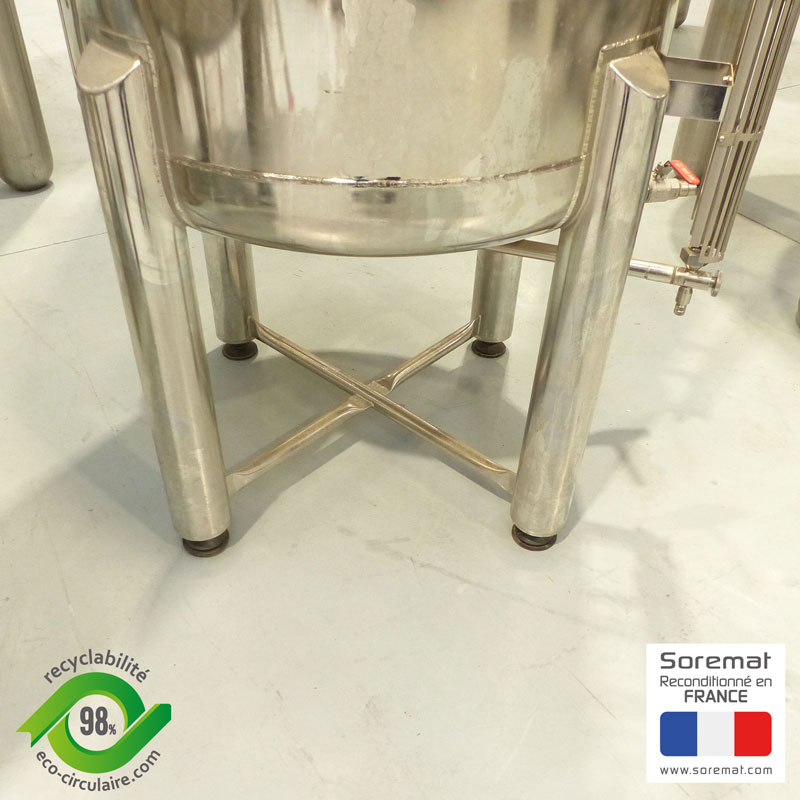

- Stainless steel tank on 4 feet, foot diameter 90 mm
- ATEX 0.5 Kw motor - 1429 rpm with 900 mm shaft length, 3-blade propeller tool
- Internal tank dimensions: diameter 750 mm - H1300 mm
- Curved tank bottom with central outlet
- Height from floor to valve shaft 440 mm
- Stainless steel tank on 4 feet, foot diameter 90 mm
Discover the
product features:
| PRODUCT REFERENCE: 6066 |
| CATEGORY: Tank with agitator |
| CAPACITY: 500 L |
| POWER SUPPLY: Electrical : 400 V |
| DIMENSIONS: Diameter 900 x H 2400 mm |
| WEIGHT: 150 kg |
